The PJ2T station is up and running now as a world-class contest station (click here for the master equipment inventory list). The construction of the towers and antenna system is essentially complete. Major construction took place in June/July of 2001, during which time our 6000 pound ocean shipment, which left Ohio on 21 April 2001, was transformed into two towers of 100 and 80 feet and many stacked monobanders. Click here for a photo of the 100 foot tower, with 2 el 40 at 107 feet, 5 el 20 at 95, 5 el 15 at 85, and 5 el 10 at 75. There is also a tribander fixed on South America at 45 feet. The US/JA tower is also complete -- click here for a photo. The links below will give you some idea of where we are now and where we plan to go. One of the key station concepts is to have as much gear as possible in place, thus avoiding bag drags and Customs problems and duties. Click here for the entire CCC photo library. Click here for a large (and beautiful) photo of the QTH as seen from the cliff northeast of the QTH. Click here for the "PJ2T Quick Operating Guide." Click here for driving directions to the station.

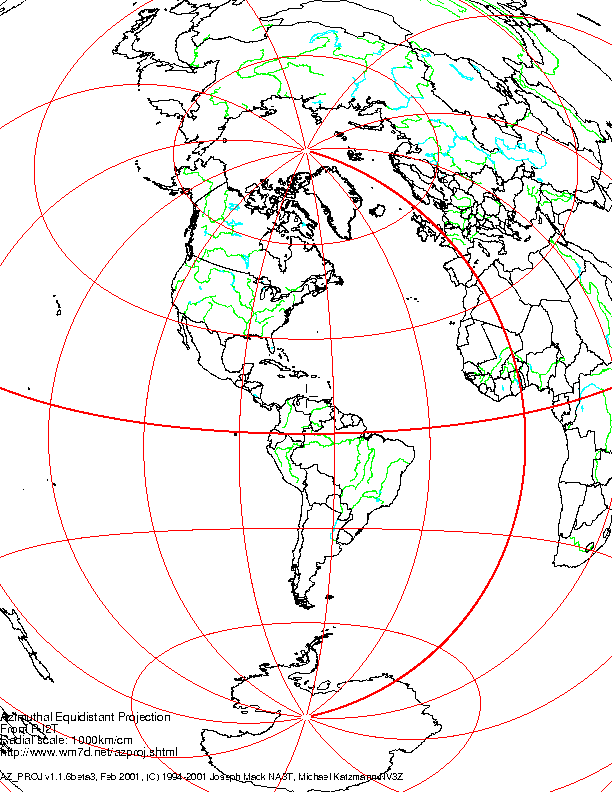

(Magnetic variation in Curacao is 8.5 degrees W. The station is at 12 degrees N, 69 degrees W.)

(Greyed out items are in the US for repair)

Europe Tower: 100 ft Rohn 55: 2 el 40 yagi at 105 (rotatable); 5 el 20 yagi at 95; fixed Eur; 5 el 15 yagi at 85, fixed Eur; 5 el 10 yagi at 75, fixed Eur; A-3S tribander at 45, fixed South America. Click here for photo.
US/JA Tower: 80 ft Rohn 45: 5 el six meter yagi at 85 ft; 3 el CL-33 tribander at 85 ft; rotatable; 5 el 205CAS at 67 ft fixed US/JA; 2 el 80 inverted vee wire beam; XM-510 at 58 ft fixed US/JA; XM-510 ar 36 ft fixed US/JA. Click here for photo of this tower.
WARC Tower: 54 ft aluminum: 30 inv vee at 50 ft, 12/17 dual bander AW3S at 55 ft

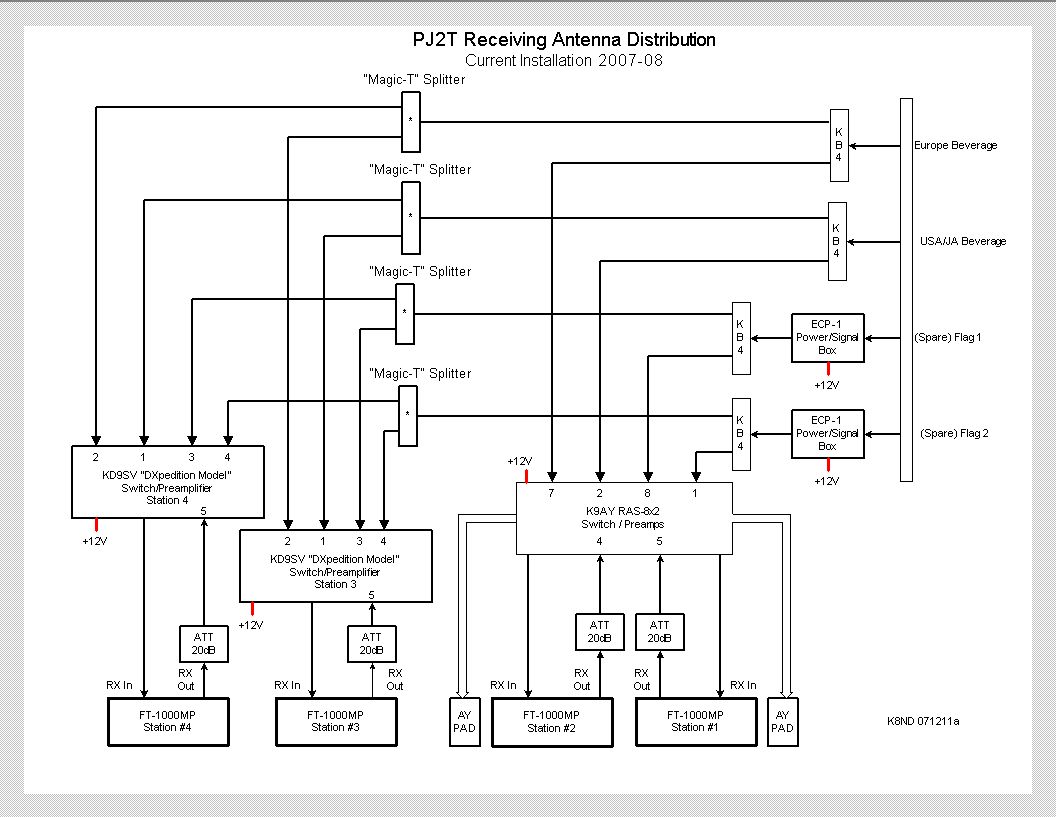

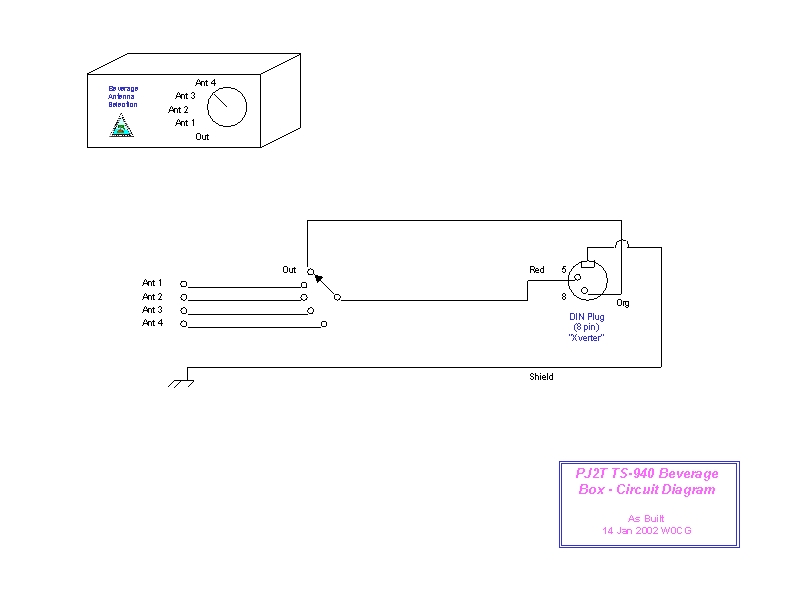

Other Antennas: 160 inv vee at 100 ft; 880 ft US/JA Beverage, 3 el 80 meter delta loop with top at 80 ft favoring Europe, 30 meter inv vee

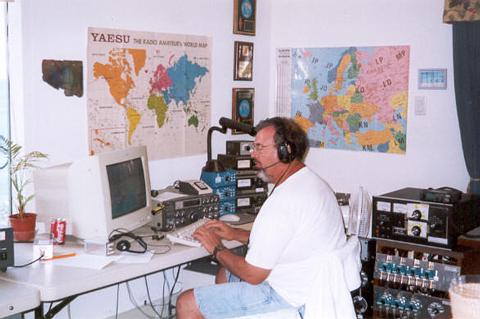

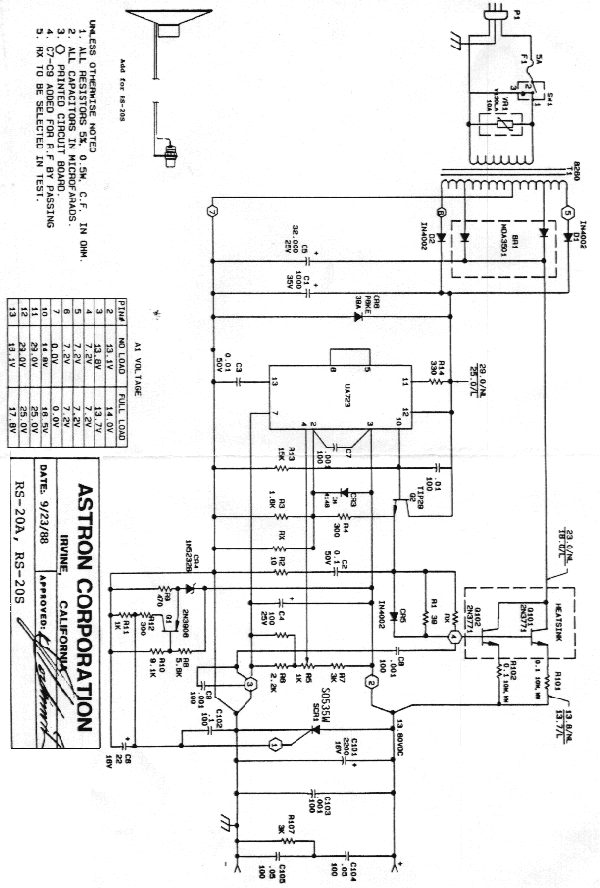

Station 1: FT-1000MP, AL-1200 linear, W5XD Multikeyer, full switchable set of W3NQN bandpass filters, Pentium desktop on Ethernet network, Bencher paddle, Heil Proset
Station 2: FT-1000 Mark V Field, Ten-Tec Titan II linear, Bencher paddle, Heil proset, IBM Pentium desktop on Ethernet network
Station 3: Omni VI (computer controlled), Amp Supply LK-800 linear, Bencher paddle, Heil proset, Pentium desktop on Ethernet network
Station 4: TS-930, Alpha 76 linear, Compaq Pentium desktop on Ethernet with flat screen monitor; Bencher paddle, IC-505 6 meter all mode transceiver

Internet: Available on Pentium at Stations # 1 and # 3.

2 Meter FM: Yaesu FT-211 RH FM rig and Ringo Ranger at about 20 feet.


PJ2T Run Station Filter Panel and Coax Entry Bulkheads

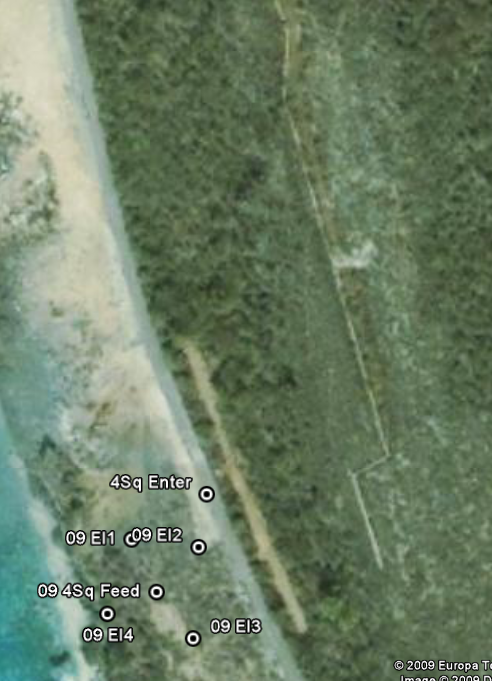

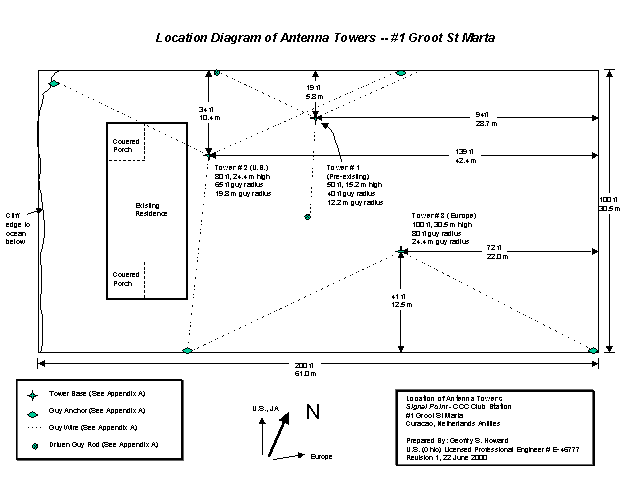

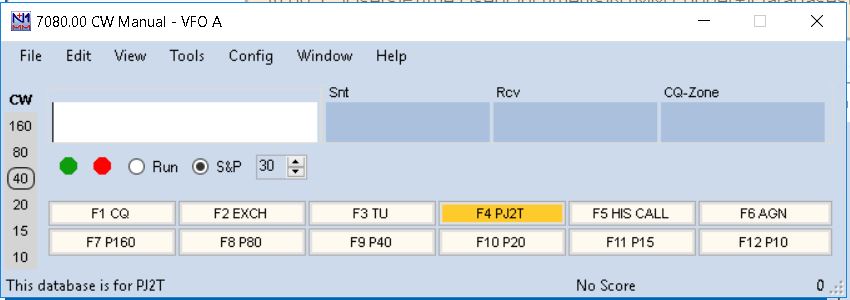

The PJ2T Station -- What's There	\| PJ2T Station Quick Overview \| PJ2T Quick Operating Guide \| PJ2T Station Layout and Antenna Switching Diagrams \| Master Station Equipment Inventory and Status List \| Signal Point West Bedroom Radio Inventory \| Signal Point East Bedroom Radio Inventory \| Fuses Inventory \| Aerial Photos from K8ND \| Aerial Photo \| Lot Layout Diagram \| Photo of All Three Towers (large file) \| Step Closet Contents \| RX Antennas from Google Earth \| PJ2T Antennas List, January 2014 \| Driving Directions to the Station \| Tree Pile Inventory \| K3 Hardware Configurations - N7IR \|
PJ2T Schedule of Operations	\| Schedule of Operations \|

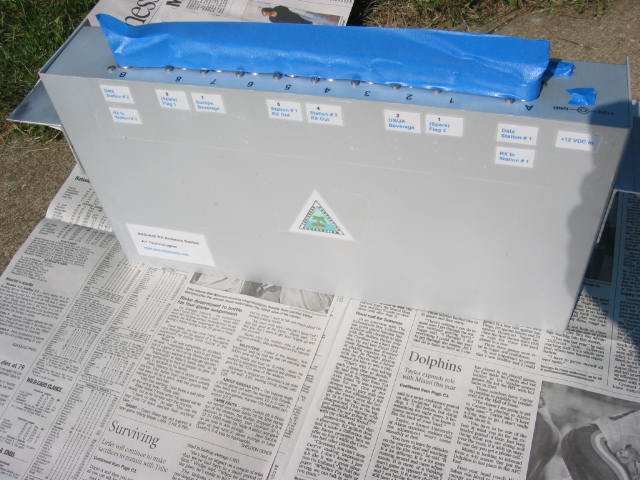

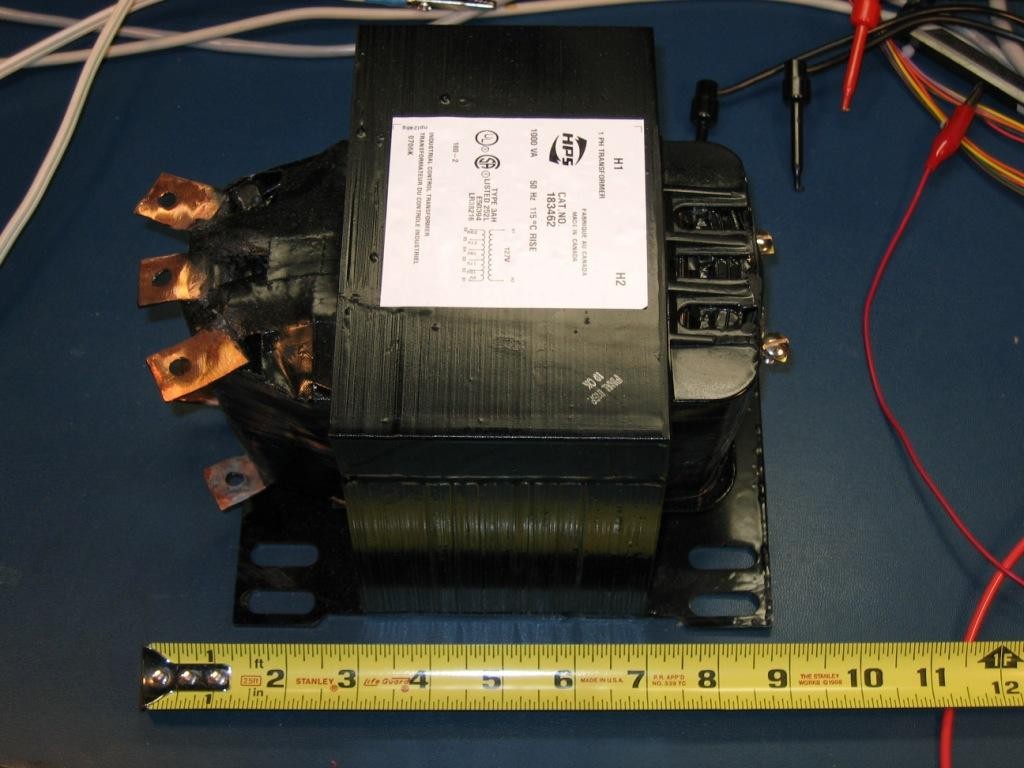

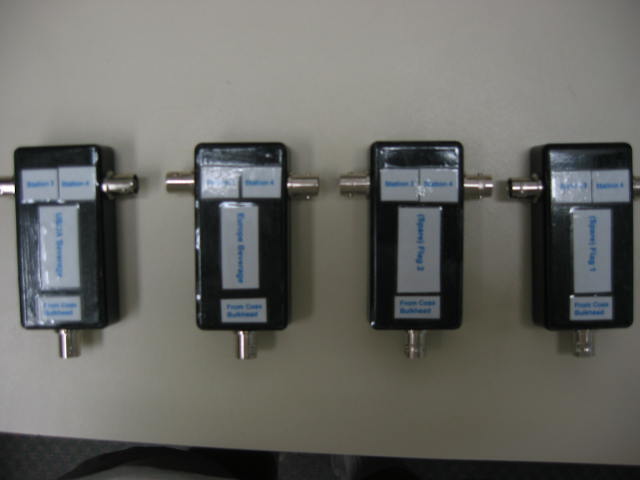

Station Photos	\| PJ2T Antenna Farm \| Aerial Photos from K8ND \| Aerial Photo \| Station #1 \| Station # 2 \| Station # 3 \| Station # 4 \| Coax Entry Bulkhead \| PJ2T as Viewed from the Cliff \| Marchena Hardware in Barber \| Gas Station in Barber \| Station # 2 with Paradise in Background \| Generator \| Generator Romex Entering Shack - Temporary \| Beverage Antenna Construction Photos \| Photo of All Three Towers (large file) \| 160 RX Splitters \| RAS 8x2 Box \| HPS Bucking Transformer \| Aerial Photo of PJ2T, 26 October 2010 by DL5RDO \|
